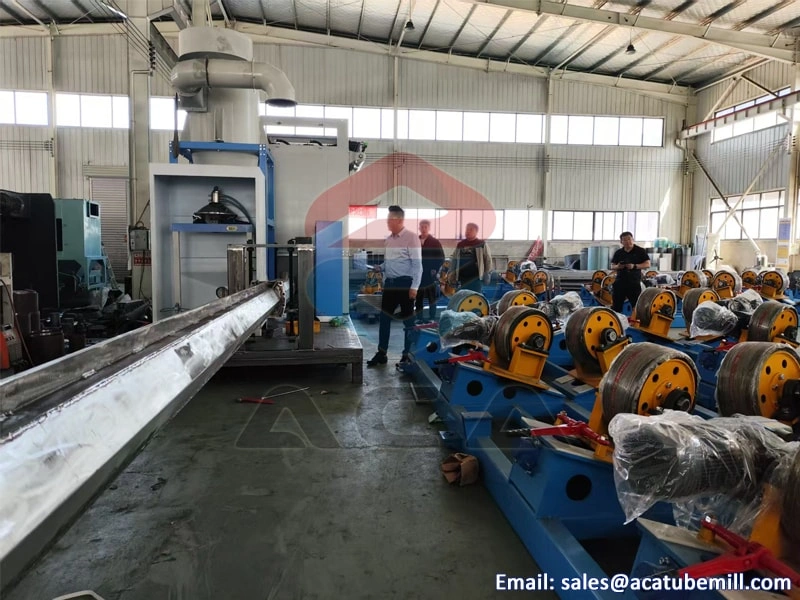

his is a foreign customer visiting our factory to inspection the FBE internal epoxy powder coating equipment they purchased. Our spraying and anti-corrosion equipment meets the high standard requirements of the customer: 1) Coating type: epoxy-phenolic powder coating with a double-layer spraying structure; 2) Coating thickness: not less than 250 microns (according to ISO 2808); 3) After the steel pipes are coated with powder anti-corrosion, the temperature cycle resistance: cycling 10 times between −40°C (16 hours) and +150°C (8 hours) (according to GOST 27037).
The inner wall of the steel pipe, after shot blasting, is coated with anti-corrosion powder using an internal spraying system through hot-melt spraying. This coating machine is specialized for internal epoxy powder anti-corrosion spraying of steel pipes, mainly used for pipeline anti-corrosion processing in the petroleum, water conservancy, and municipal fields. This internal pipe spraying anti-corrosion equipment mainly includes: mobile flat car, cantilever spray rod, internal spray gun, two-component spraying system, medium-frequency heating, dust collection and recovery system, and pipe end recovery dust removal equipment.
Technical Features:
This PipeLine coating machine is designed with advanced technology to ensure efficient and precise coating application.
1. High-pressure airless technology ensures uniform coating and strong adhesion.
2. The spray gun system moves inside the pipeline, achieving all-around, no-dead-angle spraying, capable of spraying the inner walls of steel pipes with diameters of 89mm-1640mm.
3. Single-component and two-component epoxy powder systems. (We can also provide spraying equipment for two-component liquid epoxy resin coatings according to user requirements.)
Our ACA company produces and provides epoxy powder spraying production lines and intelligent internal and external epoxy resin anti-corrosion production lines for steel pipes. These can achieve synchronous coating of the inner and outer walls of steel pipes. Compared with traditional spraying processes, it can shorten spraying time by nearly 50%, reduce energy consumption, and meet 3PE anti-corrosion treatment for ultra-large steel pipes with a maximum diameter of 3200mm. Currently, it has been applied to major water supply and oil & gas pipelines exported to Russia, Kazakhstan, Egypt, Mexico, Uzbekistan, South Africa, and other countries.
Related video：
The inner wall of the steel pipe, after shot blasting, is coated with anti-corrosion powder using an internal spraying system through hot-melt spraying. This coating machine is specialized for internal epoxy powder anti-corrosion spraying of steel pipes, mainly used for pipeline anti-corrosion processing in the petroleum, water conservancy, and municipal fields. This internal pipe spraying anti-corrosion equipment mainly includes: mobile flat car, cantilever spray rod, internal spray gun, two-component spraying system, medium-frequency heating, dust collection and recovery system, and pipe end recovery dust removal equipment.

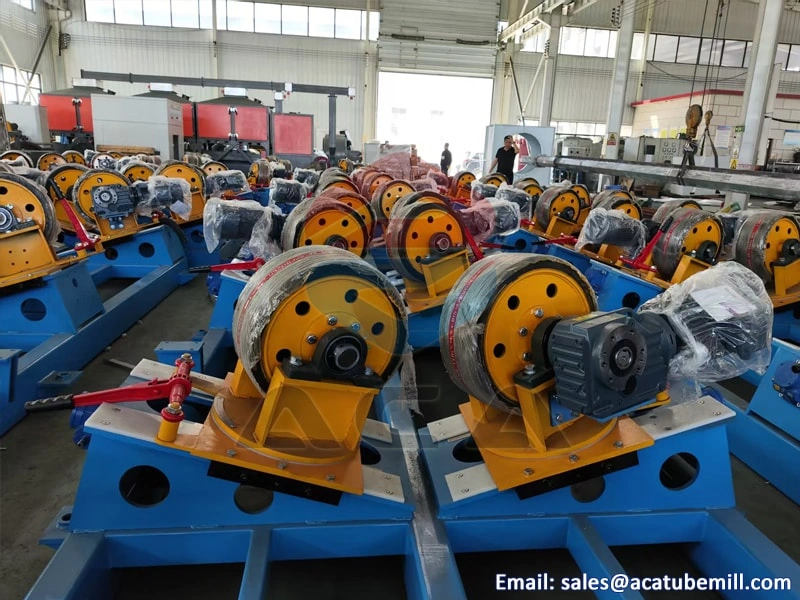

The Anti-Corrosion Coating processing production line is used to make two layer FBE, two layer PE, three layer PE (3PE), TPEP Two layer epoxy powder coated on external steel pipe (⌀57-1220mm).
ACA Group warmly invite you attend International Tube and Pipe Trade Fair 2026, at Dusseldorf. --Exhibition date: 13-17 APRIL, 2026 --Our booth NO.: 7-D20-2
May China and the world enjoy peace and prosperity in the new year.
Our ACA company can provide complete pipeline laying machines, PipeLine crawler pipelayer with different lifting capacities according to user requirements for pipeline construction tonnage, with maximum lifting capacities ranging from 15,000 kg to 120,000 kg.
The Submerged Arc Welded Steel pipe Production Line is the core equipment for manufacturing high-strength steel pipes, mainly used in oil and gas transportation, building structures, and other fields. Its core processes include straight seam submerged arc welding (JCOE/UOE) and spiral submerged arc welding, ensuring the strength and precision of the steel pipes through precise forming and welding technologies.
Our company can produce complete ERW Tube Mill (straight seam welded pipe production lines) that meet API standards. The pipe diameter ranges from DN12mm to DN711mm, and the pipe wall thickness is 3-120mm.
This production line, which applies 3PE coating to the outer wall and epoxy powder coating to the inner wall of steel pipes, can process steel pipes DN219mm to DN2200mm, and Pipe lengths from 6m to 12.5m.
Our ACA company manufactures large-diameter straight seam steel pipe production line, which is running continuously in our users' factories in China. Our JOCE welded pipe line achieves automated production, greatly facilitating users' visualized quality monitoring and management of the production process.
Our ACA company's Internal wall shot blasting machienry can handle steel pipe diameters up to 3020mm. We can design specialized steel pipe internal wall cleaning production lines for oil and gas pipeline corrosion protection based on the user's required pipe diameter.
